Precision-engineered orthopedic implants, myoelectric bionic limbs, total joint prostheses, and trauma fixation plates compliant with international ISO 13485 and CE standards.
A comprehensive B2B perspective on load distribution, kinematic stability, and material selection in modern joint restoration.
The human elbow joint is a complex trochoid-ginglymus articulation comprising the humero-ulnar, humero-radial, and proximal radio-ulnar joints. Restoring function through total elbow arthroplasty (TEA) or bionic upper extremity prosthetic reconstruction presents unique biomechanical challenges due to high moment arms, multi-axial rotation, and limited bone stock surrounding the distal humerus and proximal ulna.
Clinical Information Gain Note: Unlike total hip or knee replacements where axial compressive loads dominate, elbow prostheses must withstand severe torsional shear stresses, dynamic flexural fatigue, and varus-valgus tilting forces during daily activity. Modern wholesale procurement requires strict evaluation of material wear rates, stem fixation design, and joint constraint types.
When selecting a manufacturing partner for wholesale elbow prostheses, orthopedic procurement committees and medical device distributors must evaluate three primary structural categories:
Mechanically connected humeral and ulnar components using a hinge axis pin. Ideal for severe bone loss, gross ligamentous instability, and revision arthroplasty, preventing dislocation under lateral shear forces.
Relies entirely on preserved collateral ligament integrity and surrounding soft-tissue envelope. Provides anatomical load transfer with minimal stress shielding at the bone-cement interface.

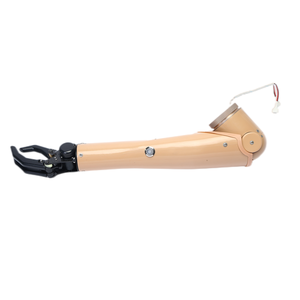

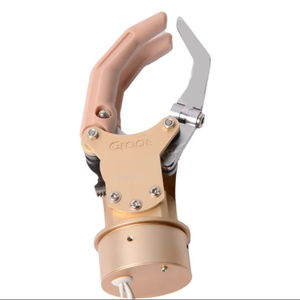

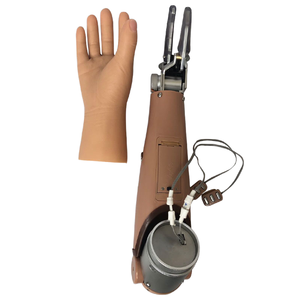

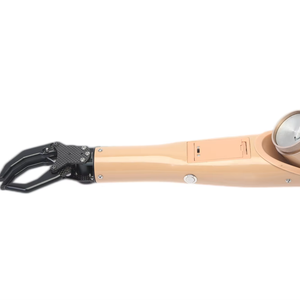

Incorporates multi-channel EMG surface sensors, brushless micro-actuators, and proportional microprocessors to convert residual upper arm muscle signals into fluid 2-degree or 3-degree of freedom elbow motion.
Combining 30+ years of orthopedic manufacturing heritage with advanced 5-axis CNC machining, ultra-cleanroom sterilization, and global compliance leadership.
Operating from a 62,391 sq. ft. modern manufacturing complex equipped with multi-axis Integrax automated turn-mill centers and 5-axis CNC high-speed machining centers, our facility delivers micron-level manufacturing precision. We uphold rigorous internal quality standards to serve hospital chains, government procurement tenders, and private medical brands worldwide.
All surgical implants are fabricated strictly using certified Ti6Al4V ELI (ASTM F136) titanium alloy, Stainless Steel 316LVM (ASTM F138), and Ultra-High Molecular Weight Polyethylene (UHMWPE ASTM F648), ensuring optimal biocompatibility and wear resistance.
Final cleaning, ultrasonic degreasing, assembly, and dual-pouch barrier packaging occur within certified ISO Class 7 cleanroom environments, minimizing bioburden levels prior to EO or Gamma radiation sterilization.
We provide full-scope contract manufacturing including custom CAD component design, physical biomechanical fatigue testing, custom surgical instrument set development, and localized laser marking.
Comparative structural analysis of elbow joint fixation and replacement options to guide institutional procurement decisions.
| Implant Type / Solution | Biomechanical Material | Primary Clinical Indication | Constraint Level | Fatigue Life Expectancy |
|---|---|---|---|---|
| Semi-Constrained Total Elbow | Ti6Al4V ELI + UHMWPE Bushing | Rheumatoid Arthritis, Post-Traumatic Osteoarthritis | Semi-Constrained (Bushing) | > 10 Million Cycles (ISO 14879) |
| Radial Head Prosthesis | Cobalt-Chromium-Molybdenum / Titanium | Comminuted Radial Head Fractures (Mason Type III/IV) | Non-Constrained Modular | High Anatomical Load Carrying |
| Distal Humerus Locking Plate | Pure Titanium / Stainless Steel 316LVM | Intra-articular Distal Humerus Fractures (AO/OTA 13-C) | Rigid Osteosynthesis | Anatomic Pre-contoured Dynamic Fixation |
| Myoelectric Bionic Elbow Joint | Carbon Fiber Shell + Aircraft Aluminum | Transhumeral Amputation Reconstruction | Motor-Driven Flexion/Extension | 500,000 Full Cycle Actuations |
| External Dynamic Elbow Fixator | High-Strength Stainless Steel & Anodized Al | Severe Complex Joint Instability / Contracture Release | Hinged External Distraction | Temporary Stabilization (6-12 Weeks) |
Key technological shifts driving global medical procurement, hospital tender specifications, and next-generation surgical solutions.
Direct Metal Laser Sintering (DMLS) titanium 3D printing enables trabecular metal structures with 60-70% porosity. This mimics natural cancellous bone, dramatically accelerating biological bony ingrowth (osseointegration) and reducing aseptic loosen rates.
Bionic upper extremity prostheses are rapidly shifting from basic single-channel EMG switches to pattern-recognition AI algorithms and targeted muscle reinnervation (TMR) interfaces, providing intuitive proportional control and tactile haptic feedback.
Pre-operative 3D CT reconstruction allows factories to produce custom patient-matched distal humerus and ulnar stems alongside patient-specific cutting guides, reducing intra-operative surgical time by up to 35%.
Essential technical, regulatory, and supply chain insights for international medical device importers and hospital buyers.
Partner directly with China's leading orthopedic implant factory. Contact our international export engineering team today for comprehensive quotations, compliance dossiers, and sample evaluation packages.
