Explore our ISO 13485 & CE certified cervical interbody implants, engineered with zero-profile mechanisms, dual-locking systems, and porous trabecular titanium technologies for optimal spinal arthrodesis.
Anterior Cervical Discectomy and Fusion (ACDF) remains the gold-standard surgical intervention for symptomatic cervical disc degeneration, herniation, and spinal instability. The engineering paradigm of cervical interbody fusion cages has rapidly evolved over the past decade. Moving beyond passive structural spacers, modern implants are active biological and mechanical scaffolds designed to optimize osteogenesis, restore sagittal alignment, and maintain intervertebral disc height.
As a lead global OEM factory and contract manufacturer, our production engineering combines advanced polymer chemistry (PEEK Optima) with additive 3D titanium manufacturing. By controlling pore topology, surface micro-roughness, and anatomical lordotic profiles, we provide international orthopedic vendors with implants that yield high fusion rates and lower subsidence risks.
Our 62,391 sq. ft. manufacturing campus in Waghodia, Gujarat operates high-precision 5-axis CNC Swiss lathe systems, automated ultrasonic cleaning lines, and ISO Class 7 cleanroom packaging facilities. We partner with global orthopedic brands to deliver customized cervical interbody devices tailored to specific regulatory and clinical requirements.
E-E-A-T Commitment: Certified medical-grade raw materials sourced from ISO-validated suppliers (Invibio PEEK, Ti-6Al-4V ELI grade), backed by full chemical and mechanical batch analysis dossiers.
Understanding the biomechanical interactions between synthetic interbody cages and native human cervical bone structure.

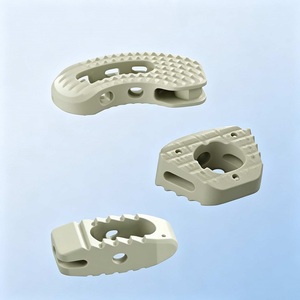

Polyetheretherketone (PEEK) features a modulus of elasticity (3.6 GPa) closely matching human cortical bone. This physiological match minimizes stress shielding, preserving host vertebral endplates and reducing stress concentration at the graft interface.
Radiolucent properties allow clear X-ray and CT visualization of bone bridge formation within the internal graft cavity during post-operative follow-up.

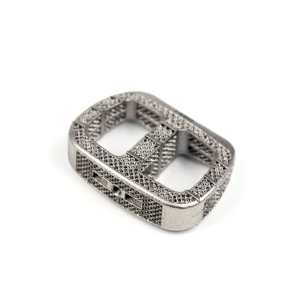

Additive manufacturing via Electron Beam Melting (EBM) and Direct Metal Laser Sintering (DMLS) allows the creation of open porous titanium matrix structures (60-80% porosity, 400-600 μm pore size).
This interconnected porous structure promotes cellular attachment, vascularization, and direct bony ingrowth (osseointegration) without the need for bone graft extenders.

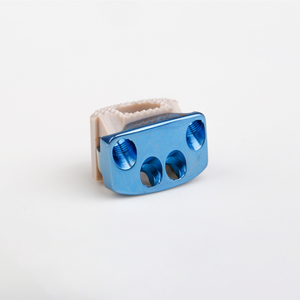

Zero-profile standalone cervical cages integrate locking bone screws directly inside the interbody construct. By eliminating external anterior plates, these designs reduce operative time, minimize anterior soft-tissue retraction, and significantly lower post-operative dysphagia rates.
Comparative matrix for medical device buyers and OEM product developers evaluating structural specs across implant types:
| Implant Specification | Standard PEEK Cervical Cage | Zero-Profile Integrated PEEK | 3D Porous Titanium Cage |
|---|---|---|---|
| Primary Material | PEEK Polymer (ASTM F2026) | PEEK + Ti-6Al-4V Alloy Screws | Ti-6Al-4V ELI Powder (ASTM F136) |
| Elastic Modulus | 3.6 GPa (Close to cortical bone) | 3.6 GPa Body / 110 GPa Screw | 2.5 - 4.5 GPa (Engineered Porosity) |
| Radiolucency | High (X-Ray transparent with Ti pins) | Moderate (Screws visible, cage clear) | Radiopaque (Artifact free under CT) |
| Primary Fixation | Anterior Cervical Plate Required | Self-Locking Variable Angle Screws | Pyramidal Serrations & Screw Options |
| Bone Ingrowth Potential | Limited to Graft Cavity | Graft Cavity + Mechanical Stability | 3D Interconnected Osteoconduction |
| Lordotic Angles Offered | 0°, 4°, 8°, 12° Options | 0°, 6°, 10° Lordosis | Anatomical Pre-contoured 4° to 12° |
Key technological innovations reshaping global orthopedic manufacturing and procurement strategies over the next decade.
While traditional PEEK is bio-inert, next-generation OEM requirements focus on bioactive surface coatings. By embedding Hydroxyapatite (HA) directly into the polymer matrix or applying sub-micron Titanium Plasma Spray (TPS) layers, implants combine the elastic modulus of PEEK with the cellular adhesion qualities of titanium.
Driven by AI-powered preoperative planning software, custom OEM production is moving toward patient-matched cervical cages for complex revision surgeries, tumor resections, and severe anatomical deformities. Our direct DMLS printing pipelines enable short turnarounds for bespoke implant geometries.
Future cervical interbody systems increasingly utilize internal mechanical expansion locks. These cages insert at a low height to prevent endplate damage, then expand vertically and lordotically in situ to restore disc height and optimize sagittal alignment without forceful impact driving.

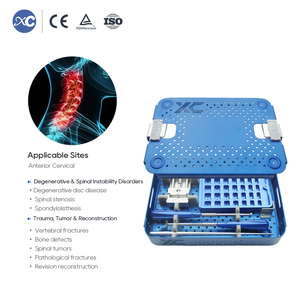

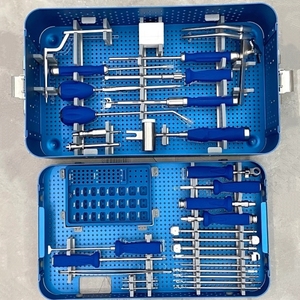

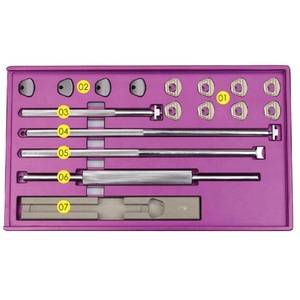

Distributors no longer seek implants alone; they demand unified system solutions. Modern OEM procurement mandates color-coded, tactile, quick-latching surgical instruments housed in custom-milled aluminum trays optimized for steam autoclave sterilization cycles.
Streamlined contract manufacturing services engineered to accelerate product market entry and ensure international regulatory compliance.
Design for Manufacturability (DFM) review by our senior biomedical engineering team to refine geometries, tolerance stack-ups, and toolpath strategies.
Precision prototyping using 5-axis CNC machining and 3D printing within 10 to 14 business days, complete with initial CMM inspection reports.
Automated ultrasonic washing, passivations, laser etching of part serial numbers, and double pouch sterile barrier blister sealing.
Complete Technical File compilation including ISO 10993 biocompatibility testing, mechanical fatigue test data, and CE/FDA submission guidance.
Our quality management systems are fully certified under ISO 13485:2016 and ISO 9001:2015 standards. Every cervical interbody cage exported carries 100% material heat-lot traceability, ensuring your brand maintains strict compliance with European MDR (EU 2017/745), US FDA 21 CFR 820, and international regulatory frameworks.
With multi-axis CNC machines and automated manufacturing lines operating in our 62,391 sq. ft. campus, we easily handle both low-volume custom orders and high-volume commercial contract runs with consistent quality across batches.
Direct technical and logistical insights for medical device procurement managers and hospital buyers.
Partner with India's leading orthopedic implant manufacturer and exporter. Request complete technical catalogs, material certification samples, and direct factory pricing for custom OEM cervical fusion cage solutions.
